Automated Staining Platform

The Bio SB TintoStainer Plus Line

Bio SB TintoStainer Plus instruments give users access to Bio SB’s extensive menu of over 500 mouse and rabbit monoclonal antibodies for high-quality, consistent results.

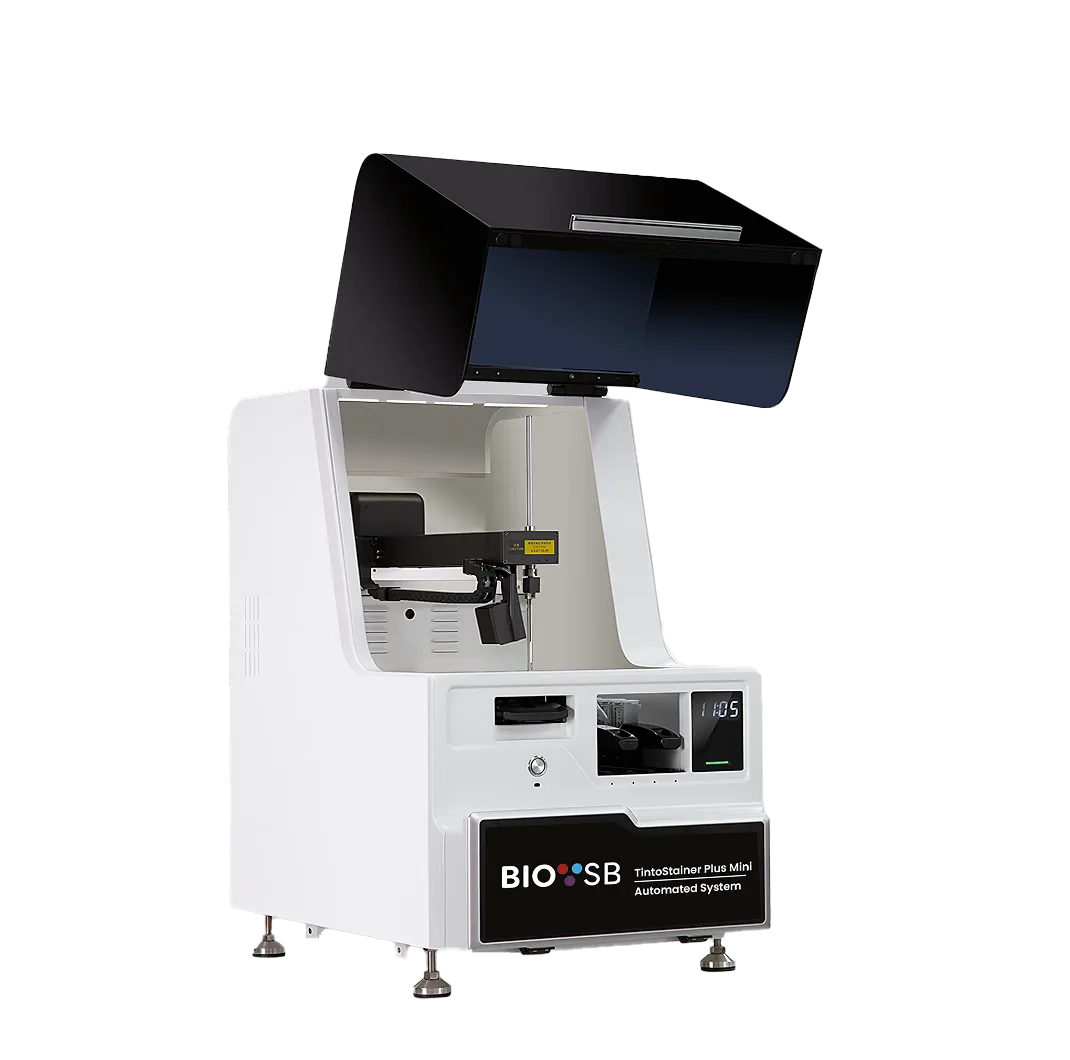

TintoStainer Plus Mini

The TintoStainer Plus Mini is a compact version of the TintoStainer Plus, making it an ideal solution for space-conscious laboratories. It can process up to 10 slides per run, and holds six 1.5 L bulk reagent containers for ergonomic handling and ease of use. The TintoStainer Plus Mini’s compact size allows for flexible placement on any tabletop, while still providing fully automated IHC staining.

Learn More

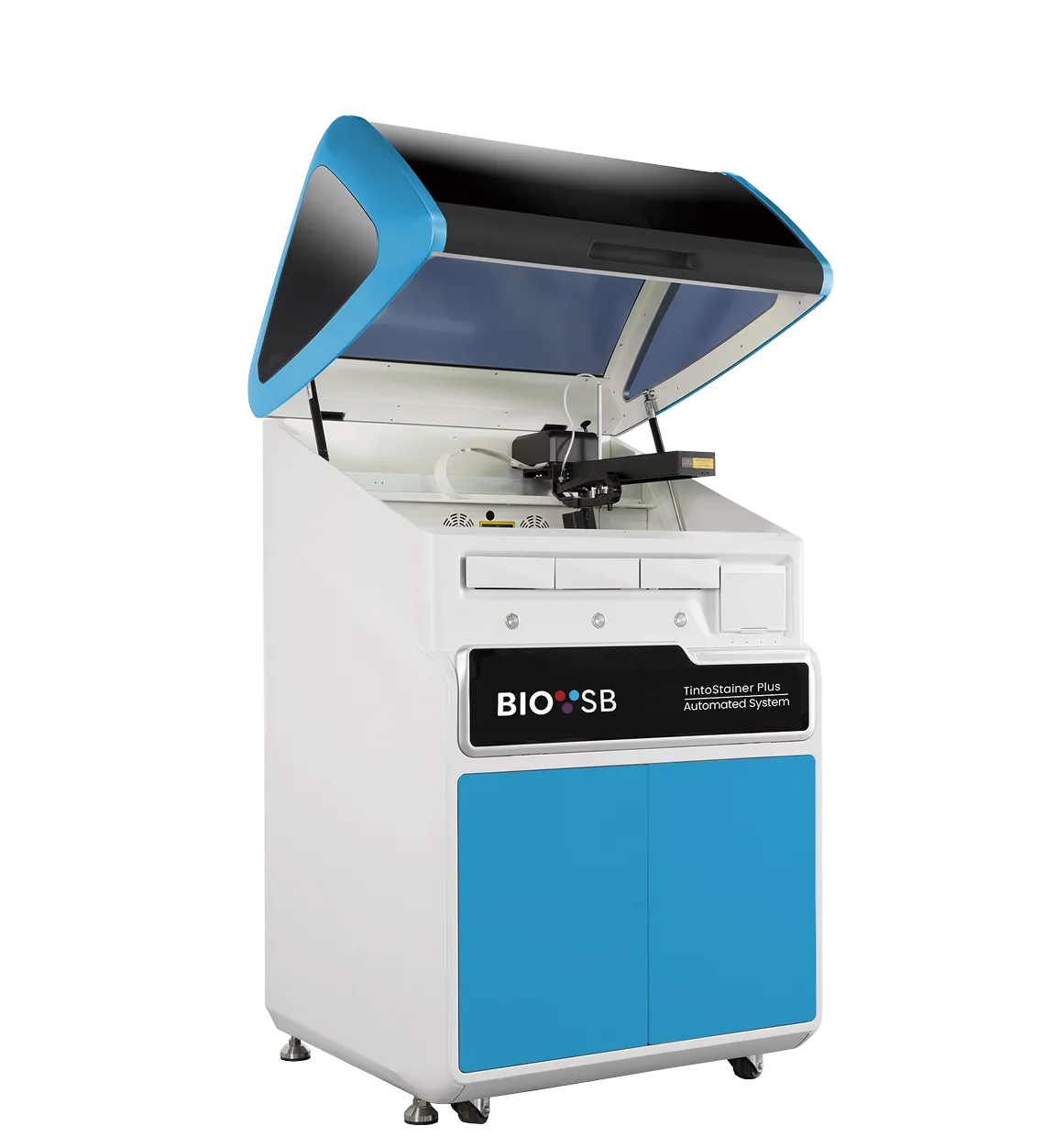

TintoStainer Plus

The Bio SB TintoStainer Plus is capable of processing up to 30 slides simultaneously, with three slide drawers that allow for continuous loading. It holds up to 36 reagents in 7 mL or 30 mL volumes. Our intuitive, user-friendly software ensures that the TintoStainer Plus is easy to operate while maintaining staining quality. This makes the TintoStainer Plus a great instrument for laboratories that want to increase their workflow efficiency.

Learn More

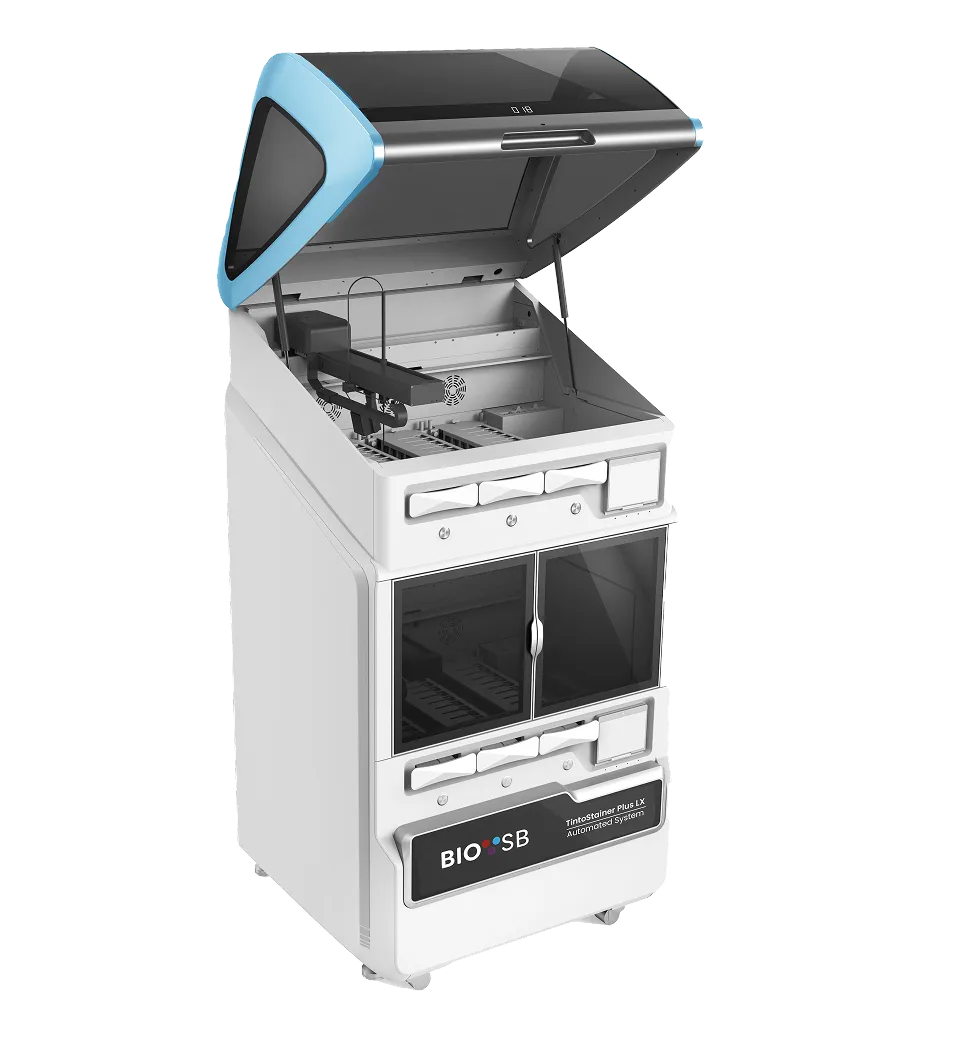

TintoStainer Plus LX

The TintoStainer Plus LX is a high-throughput instrument capable of processing 60 slides in a single run, with a total of six independent slide drawers for continuous loading. The high-capacity reagent trays hold up to 72 reagent containers, and seven 2.5 L bulk reagent containers underneath can be refilled while the instrument is running. This provides ergonomic handling for uninterrupted workflow, while still maintaining speed and minimal user maintenance.

Learn More

Compare Models Slide By Slide

Whatever your laboratory needs are, our team can work with you to discover which TintoStainer instrument will give you the best workflow solutions.

TintoStainer Mini

Compact option for space optimization and workflow support.

Tintostainer Plus

User-friendly interface meets extraordinary quality.

Tintostainer LX

For labs looking for high throughput with high efficiency.

Features

Includes

Slide Capacity

10 Slides

30 Slides

60 Slides

Reagent Capacity

36 Reagents

72 Reagents

Antibody Dispense Volume

120 µL

Reagent Container Volume

7 mL & 30 mL

Bulk Reagent Container Volume

1.5 L

2.5 L

Bulk Waste Container Volume

10 L

18 L

Hazardous Waste Container Vol

1.5 L

2.5 L

18 L

Power Consumption

600 VA

1000 VA

2000 VA

Weight

100 kg (220 lbs)

250 kg (551 lbs)

400 kg (882 lbs)

Dimensions

50 x 70 x 80 cm (19.7 x 27.6 x 31.5 in)

84.5 x 77 x 130 cm(33.3 x 30.3 x 51.2 in)

84.5 x 77 x 153 cm(33.3 x 30.3 x 60.2 in)
