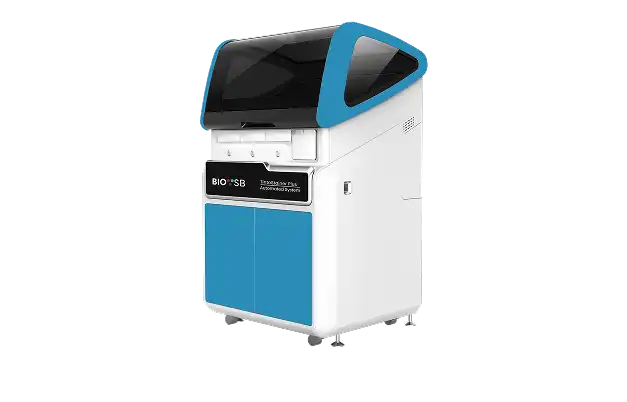

TintoStainer Plus
The Bio SB TintoStainer Plus is a fully automated instrument capable of processing up to 30 slides simultaneously in a single run. Three slide drawers allow continuous loading for high throughput. Simple design makes user maintenance minimal, fast and easy.
Request a Quote

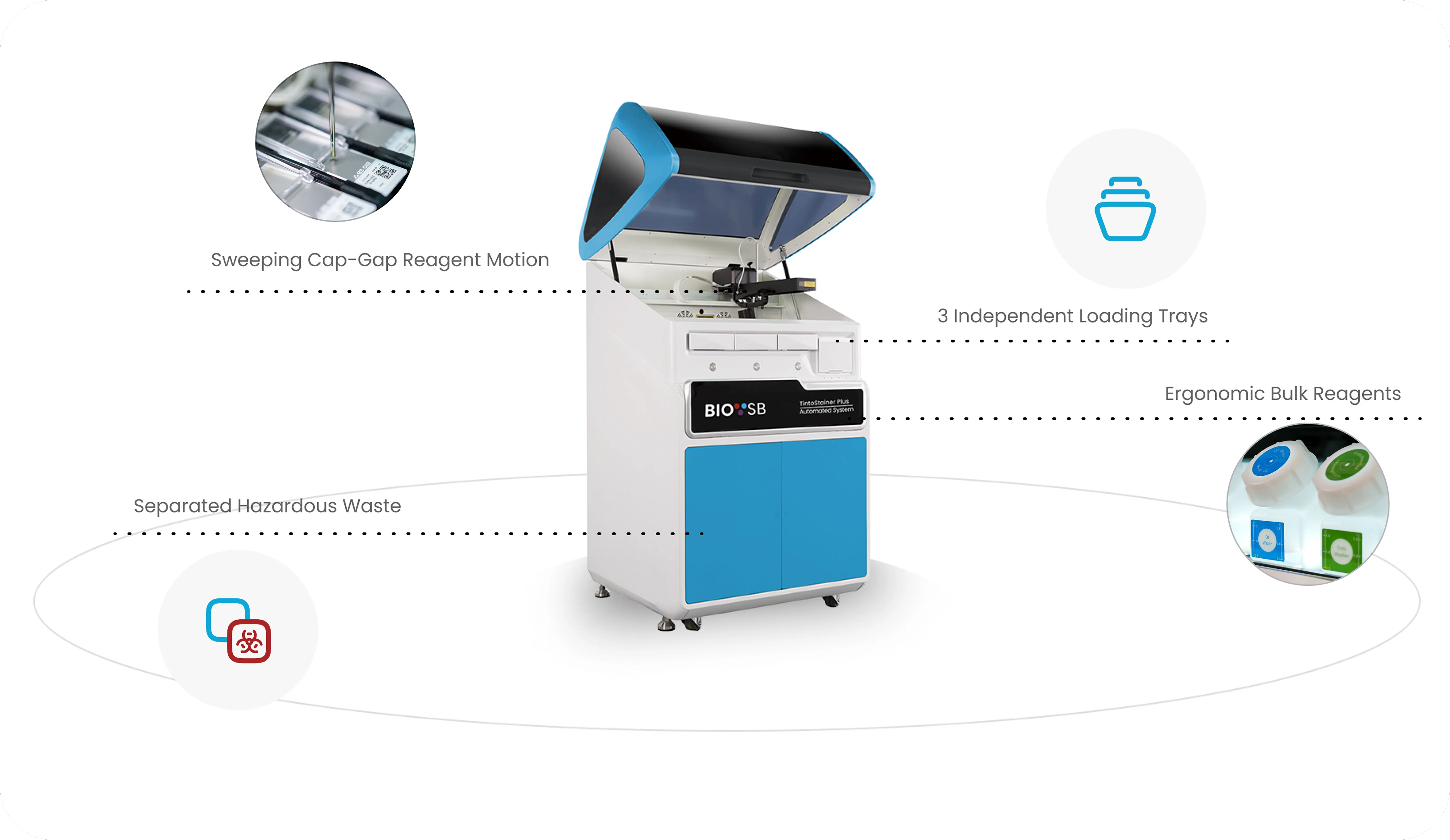

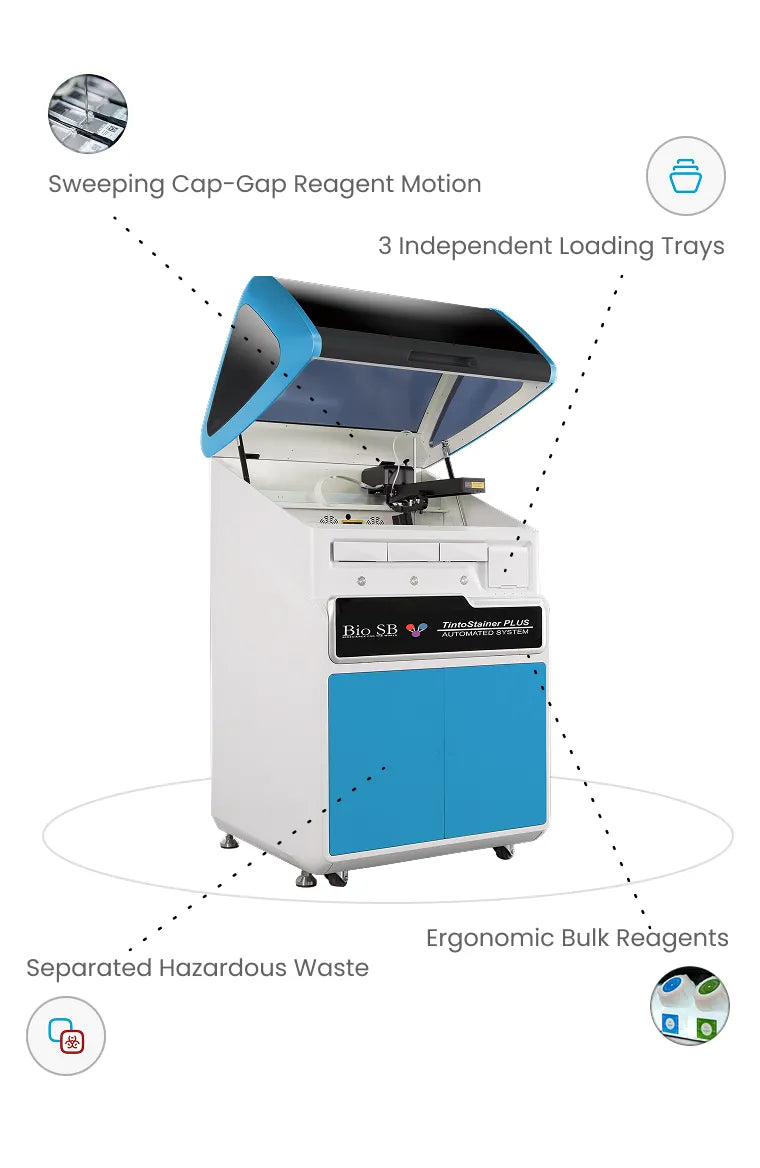

Instrument & Features
30 Slide Capacity
300+ IVD Antibody Protocols
36 Reagents
Technical Specifications
Slide Capacity:
30 Slides
Reagent Capacity:
36 Reagents
Reagent Container Volume:
7 mL & 30 mL
Antibody Dispense Volume:
120 μl/slide
Bulk Reagent Container Volume:
2.5 L
Hazardous Waste Container Volume:
2.5 L
Bulk Waste Container Volume:
18 L
Operating Voltage:
100-240 V
Power Consumption:
1000 VA
Operation Temperature:
5 °C - 35 °C
Operating Humidity:
10-80% RH
Weight:
250 kg (551 lbs)
Dimensions (LxWxH):
75 x 80 x 130 cm
