The TintoStainer LX

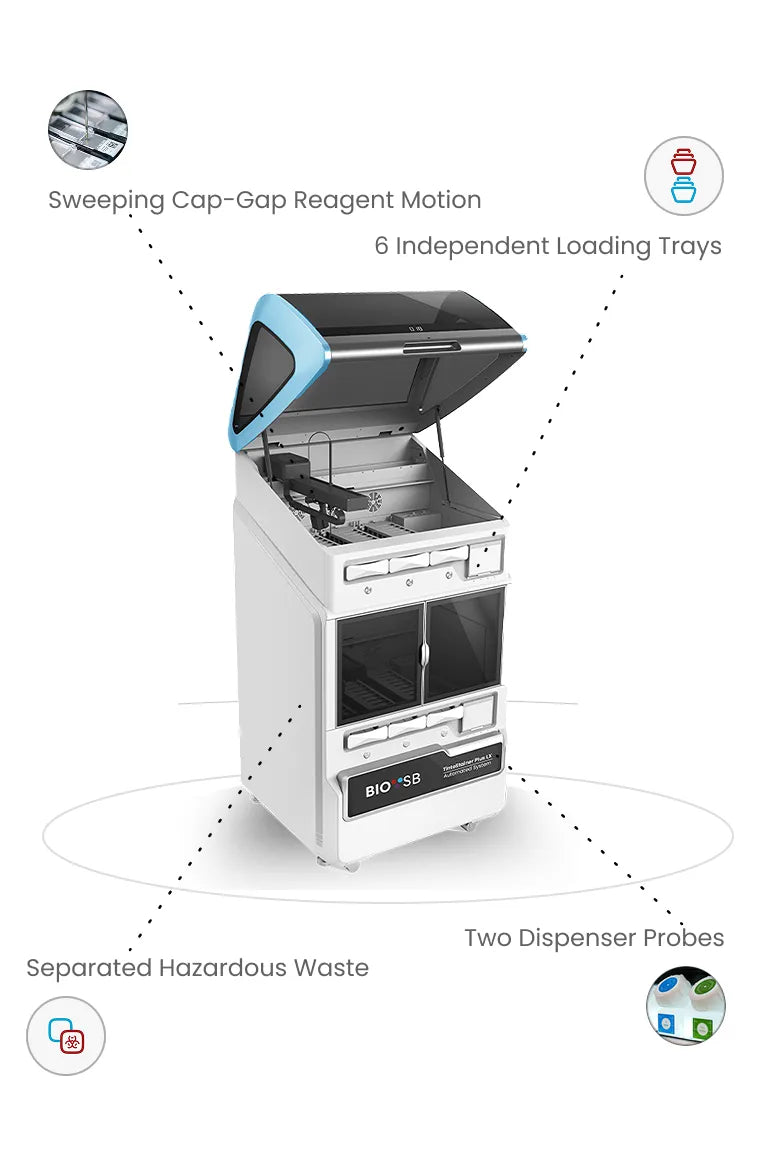

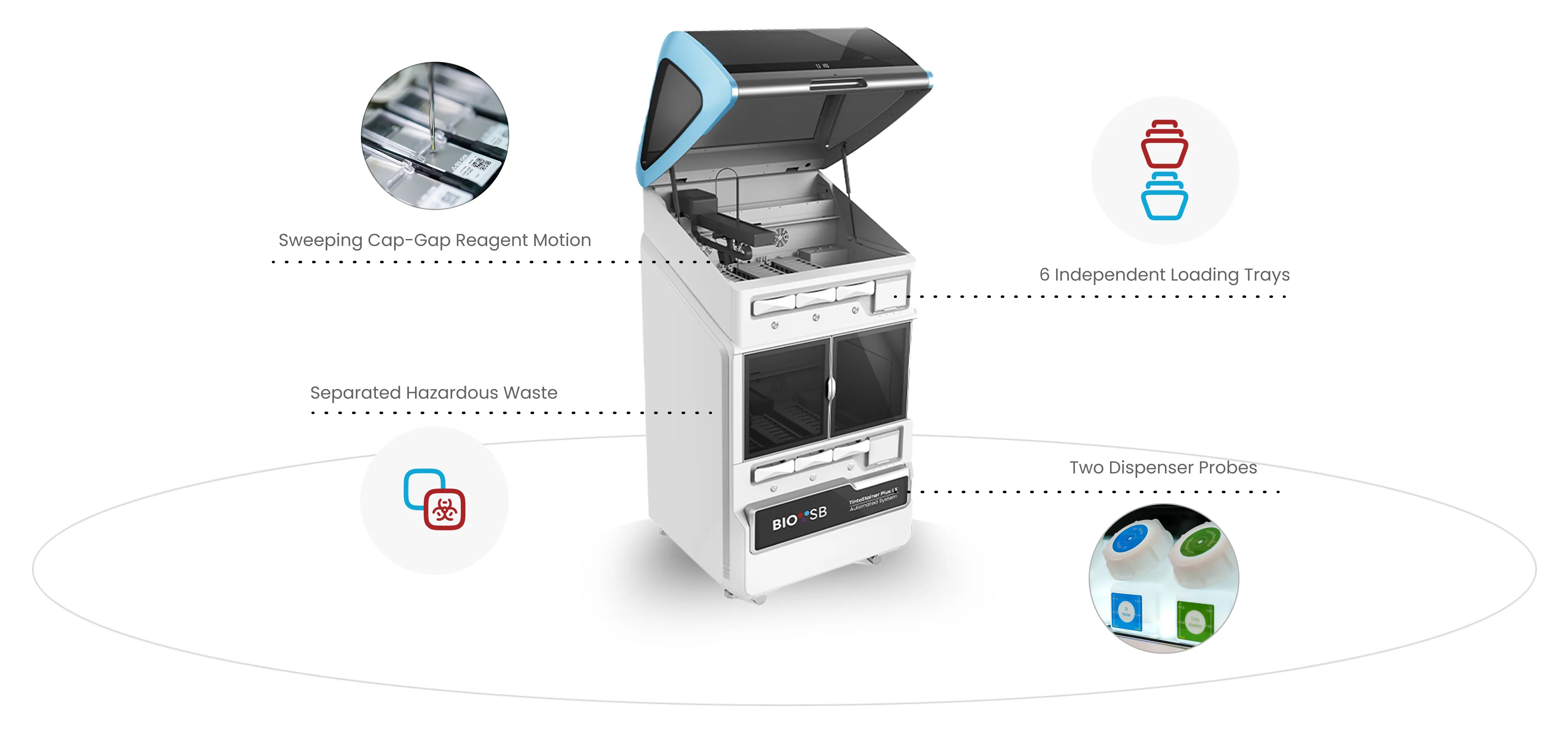

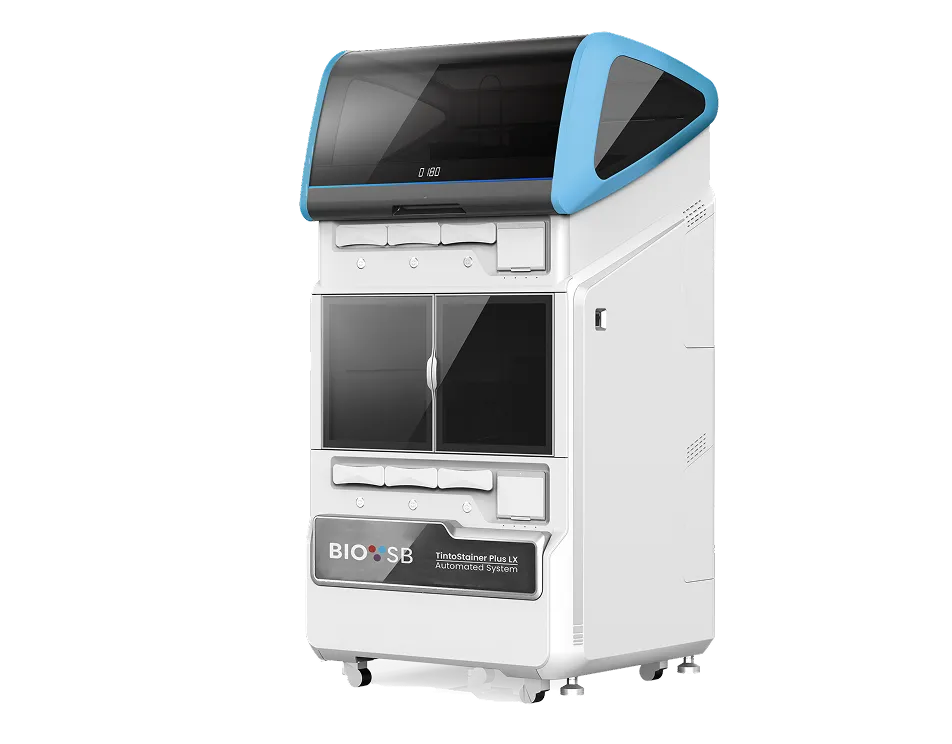

The TintoStainer Plus LX is a fully automated high-throughput instrument capable of processing up to 60 slides in a single run. The upper and lower chambers contain a total of six independent slide drawers for continuous loading and the high-capacity reagent trays holds up to 72 reagent containers. Fourteen 2.5 L bulk reagent containers in the instrument base can be refilled during the run for ergonomic handling and uninterrupted workflow. Simple design makes user maintenance fast, minimal, and easy.
Request a Quote
Instrument & Features
60 Slide Capacity
300+ IVD Antibody Protocols
72 Reagents
Technical Specifications
Slide Capacity:
60 Slides
Dimensions (LxWxH):
84.5 x 77 x 153 cm
Reagent Capacity:
72 Reagents
Reagent Container Volume:
7 mL & 30 mL
Antibody Dispense Volume:
120 μL/slide
Bulk Reagent Container Volume:
2.5 L
Hazardous Waste Container Volume:
18 L
Bulk Waste Container Volume:
18 L
Operating Voltage:
100-240 V
Power Consumption:
2000 VA
Operation Temperature:
5 °C - 35 °C
Operating Humidity:
10~80% RH
Weight:
400 kg (882 lbs)
