Simple and Reliable Chromogenic Detection of
Genomic Alterations Using Light Microscopy

 ZytoDot ® and ZytoDot ® 2C™ products are designed for the detection of aneuploidies, gene amplifications or gene deletions and translocations by chromogenic in situ hybridization (CISH) in formalin-fixed, paraffin-embedded tissue sections, cell samples, blood or bone marrow smears and metaphase chromosome spreads.

Detection Method

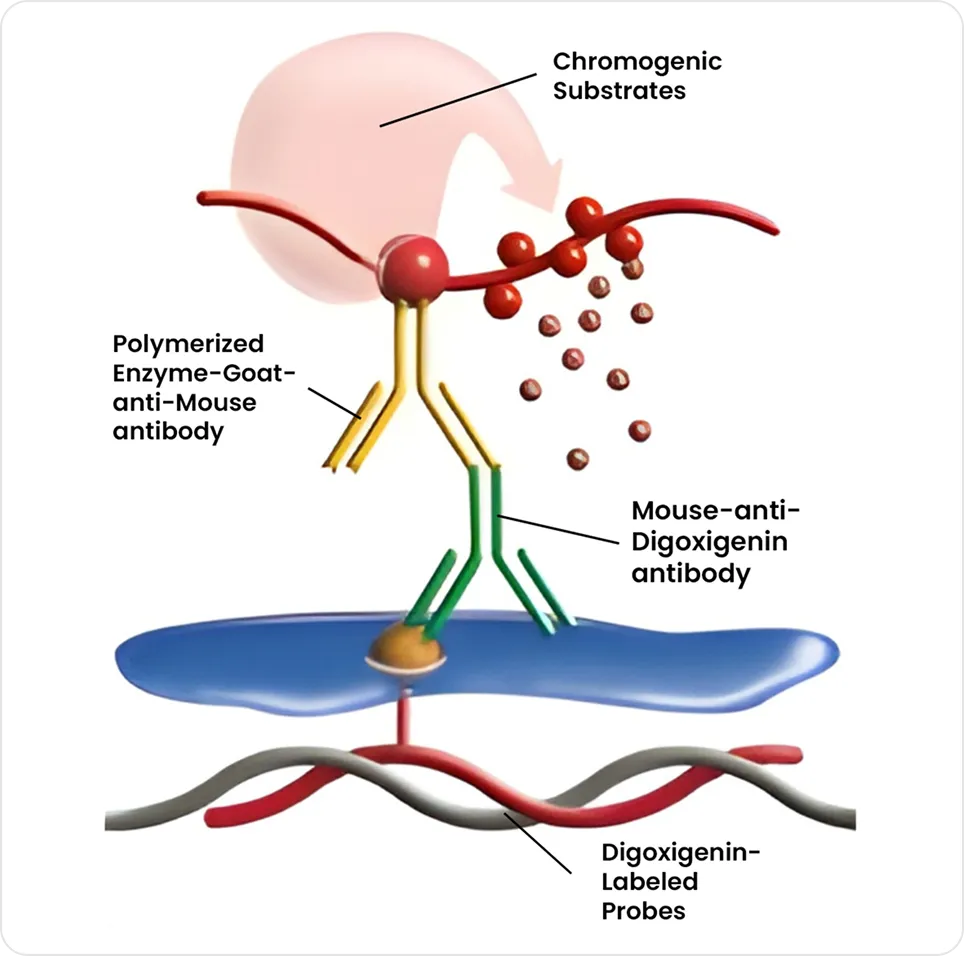

ZytoDot Single Color CISH

The ZytoDot system uses digoxigenin (DIG)-labeled probes which are detected using a mouse anti-DIG antibody. The antibody is then detected by a polymerized HRP-goat-anti-mouse antibody, facilitating the enzymatic reaction of DAB which forms strong, permanent brown staining that can be visualized by light microscopy.

Learn More

Detection Method

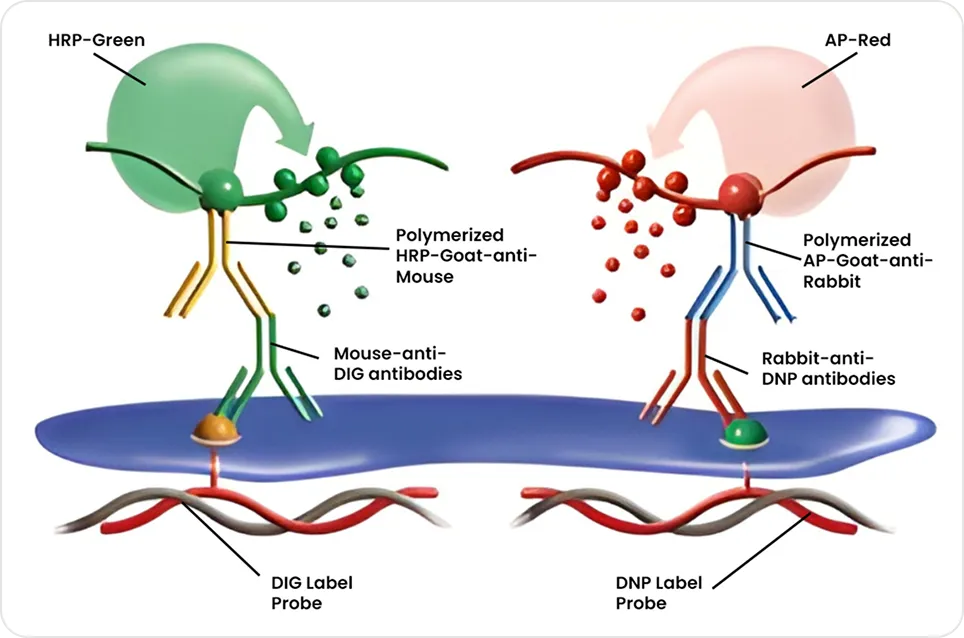

ZytoDot 2C

The ZytoDot 2C™ system uses digoxigenin (DIG) and dinitrophenyl (DNP)-labeled probe cocktails targeting different genomic sections which are detected using a mouse anti-DIG/rabbit anti-DNP cocktail. A unique cocktail of polymerized HRP-goat-anti-mouse/AP-goat-anti-rabbit antibodies creates an enzymatic reaction using AP Red and HRP Green. This forms strong permanent red and green signals that can be visualized by light microscopy.

Learn More
Advantages of [highlight]CISH[/highlight]

Advantages of CISH

  • Quick and easy interpretation of results compared to IHC
  • Simultaneous observation of tissue morphology and CISH signals
  • CISH signals are permanent and can be stored at room temperature
  • No costly fluorescent microscope needed
Request a Quote
High Signal-to-Noise Ratio

High Signal-to-Noise Ratio

The ZytoDot® probes are processed by the unique ZytoVision®Repeat Subtraction Technique resulting in advanced specificity and less background. No further blocking of repetitive sequences is needed.
Convenient Kit Solutions

Convenient Kit Solutions

All ZytoDot® CISH probes can be combined with the ZytoDot®CISH Implementation Kit (C-3018-40). The kit includes all necessary pretreatment solutions, wash buffers, antibodies, chromogens, counterstaining solution, mounting solution and a detailed protocol, making CISH analysis reliable and user-friendly. For select targets, complete kits including probes and all necessary reagents are available.
CAT.# Presentation Vol/Qty
 C-3001-400 ZytoDot SPEC HER2 Probe 400 μl
 C-3002-400 ZytoDot CEN 6 Probe 400 μl
 C-3006-400 ZytoDot CEN 17 Probe 400 μl
C-3007-400 ZytoDot SPEC EGFR Probe 400 μl
C-3008-400 ZytoDot CEN 7 Probe 400 μl
C-3012-400 ZytoDot SPEC MDM2 Probe 400 μl
C-3013-400 ZytoDot SPEC CMYC Probe 400 μl
C-3014-400 ZytoDot CEN 12 Probe 400 μl
C-3016-400 ZytoDot CEN 8 Probe 400 μl
C-3020-400 ZytoDot CEN Yq12 Probe 400 μl
C-3025-400 ZytoDot CEN X Probe 400 μl
C-3026-400 ZytoDot SPEC 21q22 Probe 400 μl
C-3029-400 ZytoDot SPEC NMYC Probe 400 μl
C-3035-400 ZytoDot SPEC 1p12 Probe 400 μl
C-3045-400 ZytoDot CEN 3 Probe 400 μl
C-3051-400 ZytoDot SPEC 2q11 Probe 400 μl
C-3052-400 ZytoDot SPEC 13q12 Probe 400 μl
CAT.# Presentation Vol/Qty
C-3032-100 ZytoDot 2C SPEC HER2/CEN 17 Probe 100 μl
C-3032-400 ZytoDot 2C SPEC HER2/CEN 17 Probe 400 μl
C-3033-100 ZytoDot 2C SPEC EGFR/CEN 7 Probe 100 μl
C-3033-400 ZytoDot 2C SPEC EGFR/CEN 7 Probe 400 μl
C-3036-100 ZytoDot 2C SPEC 1p36/1q25 100 μl
C-3036-400 ZytoDot 2C SPEC 1p36/1q25 400 μl
C-3037-100 ZytoDot 2C SPEC 19q13/19p13 100 μl
C-3037-400 ZytoDot 2C SPEC 19q13/19p13 400 μl
C-3040-400 ZytoDot 2C SPEC TOP2A/CEN 17 Probe 400 μl
C-3043-100 ZytoDot 2C SPEC EWSR1 Break Apart Probe 100 μl
C-3046-100 ZytoDot 2C SPEC SYT Break Apart Probe 100 μl
C-3047-100 ZytoDot 2C SPEC CHOP Break Apart Probe 100 μl
C-3048-400 ZytoDot 2C CEN X/Y Probe 400 μl
C-3049-100 ZytoDot 2C SPEC MDM2/CEN12 Probe 100 μl
C-3049-400 ZytoDot 2C SPEC MDM2/CEN12 Probe 400 μl
C-3050-400 ZytoDot 2C SPEC FGFR1/CEN8 Probe 400 μl
C-3053-400 ZytoDot 2C SPEC PTEN/CEN10 Probe 400 μl
C-3054-100 ZytoDot 2C SPEC FUS Break Apart Probe 100 μl
C-3055-100 ZytoDot 2C SPEC ALK Break Apart Probe 100 μl
C-3055-400 ZytoDot 2C SPEC ALK Break Apart Probe 400 μl
C-3056-400 ZytoDot 2C SPEC FGFR2/CEN 10 Probe 400 μl
C-3057-400 ZytoDot 2C SPEC MET/CEN 7 Probe 400 μl
C-3058-400 ZytoDot 2C SPEC ERG Break Apart Probe 400 μl
C-3059-400 ZytoDot 2C SPEC EML4 Break Apart Probe 400 μl
C-3062-400 ZytoDot 2C SPEC CDK4/CEN 12 Break Apart Probe 400 μl
C-3063-100 ZytoDot 2C SPEC ROS1 Break Apart Probe 100 μl
C-3063-400 ZytoDot 2C SPEC ROS1 Break Apart Probe 400 μl
C-3064-100 ZytoDot 2C SPEC RET Break Apart Probe 100 μl
C-3064-400 ZytoDot 2C SPEC RET Break Apart Probe 400 μl
C-3065-100 ZytoDot 2C SPEC FOXO1 Break Apart Probe 100 μl
C-3066-400 ZytoDot 2C SPEC MYC Break Apart Probe 400 μl
C-3067-400 ZytoDot 2C SPEC CDKN2A/CEN 9 Probe 400 μl
C-3068-100 ZytoDot 2C SPEC ERBB2/D17S122 Probe 100 μl
C-3071-100 ZytoDot 2C SPEC IGH Break Apart Probe Probe 100 μl
C-3072-100 ZytoDot 2C SPEC MALT1 Break Apart Probe 100 μl
C-3073-100 ZytoDot 2C SPEC BCL2 Break Apart Probe 100 μl
C-3074-100 ZytoDot 2C SPEC BCL6 Break Apart Probe 100 μl
C-3075-100 ZytoDot 2C SPEC CCND1 Break Apart Probe 100 μl
C-3076-10 ZytoDot 2C Glioma 1p/19q Probe Set
C-3076-40 ZytoDot 2C Glioma 1p/19q Probe Set
C-3077-100 ZytoDot 2C SPEC USP6 Break Apart Probe 100 μl
C-3078-100 ZytoDot2C SPEC NTRK1 Break Apart Probe 100 μl
CAT.# Presentation Vol/Qty
C-3003-40 ZytoDot SPEC HER2 Probe Kit 40
C-3004-40 ZytoDot Pretreatment Kit 40
C-3005-40 ZytoDot CISH Polymer Detection Kit 40
C-3018-40 ZytoDot CISH Implementation Kit 40
C-3022-10 ZytoDot 2C SPEC HER2/CEN 17 Probe Kit 10
C-3022-40 ZytoDot 2C SPEC HER2/CEN 17 Probe Kit 40
C-3028-40 ZytoDot 2C CISH Polymer Detection Kit 40
C-3044-10 ZytoDot 2C CISH Implementation Kit 10
C-3044-40 ZytoDot 2C CISH Implementation Kit 40
CAT.# Product Name
C-3005-10/-40 ZytoDot CISH Polymer Detection Kit
C-3018-10/-40 ZytoDot CISH Implementation Kit
C-3028-40 ZytoDot 2C CISH Polymer Detection Kit
C-3044-10/-40 ZytoDot 2C CISH Implementation Kit
C-3004-40 ZytoDot Pretreatment Kit
ES-0001-4/-8/-50/-1000 Pepsin Solution
PT-0002-500 Heat Pretreatment Solution EDTA
AB-0001-04/-30 Mouse-anti-DIG
AB-0002-4 Anti-Mouse-HRP-Polymer
AB-0013-4 HRP/AP-Polymer-Mix
AB-0014-4 Anti-DIG/DNP-Mix
BS-0001-4 Blocking Solution
C-3011-40 ZytoDot Wash Buffer Set
C-3015-100 ZytoDot DAB Solution Set
C-3038-100 ZytoDot AP-Red Solution Set
C-3039-100 ZytoDot HRP-Green Solution Set
CS-0001-20 Mayer’s Hematoxylin Solution
CS-0002-20 Nuclear Blue Solution
E-4007-2 ERBB2 Control Slide Set
MT-0004-4 Mounting Solution (Alcoholic)
WB-0001-500 Wash Buffer SSC
WB-0004-1000 PBS/Tween
WB-0005-50 20x Wash Buffer TBS
